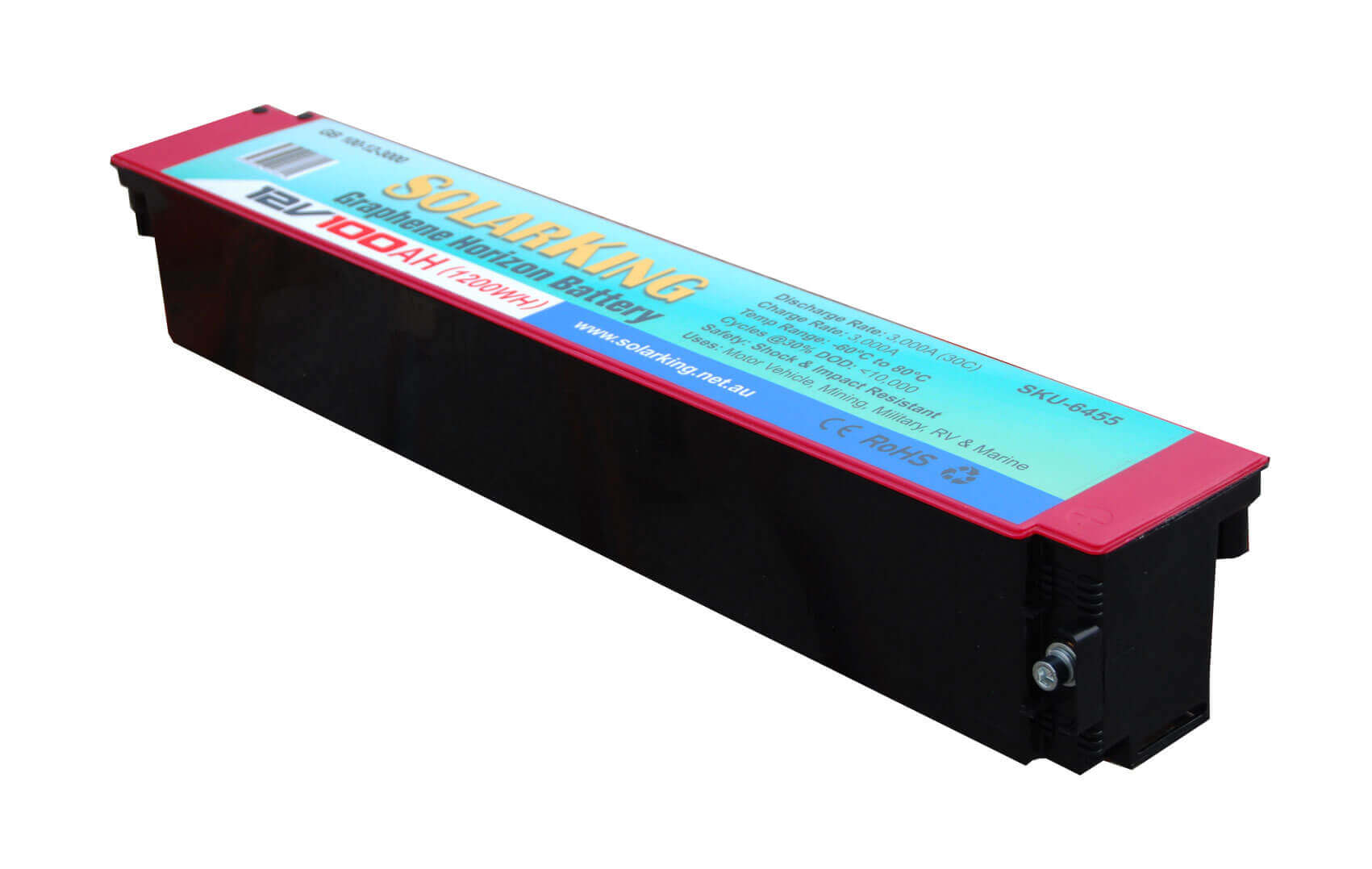

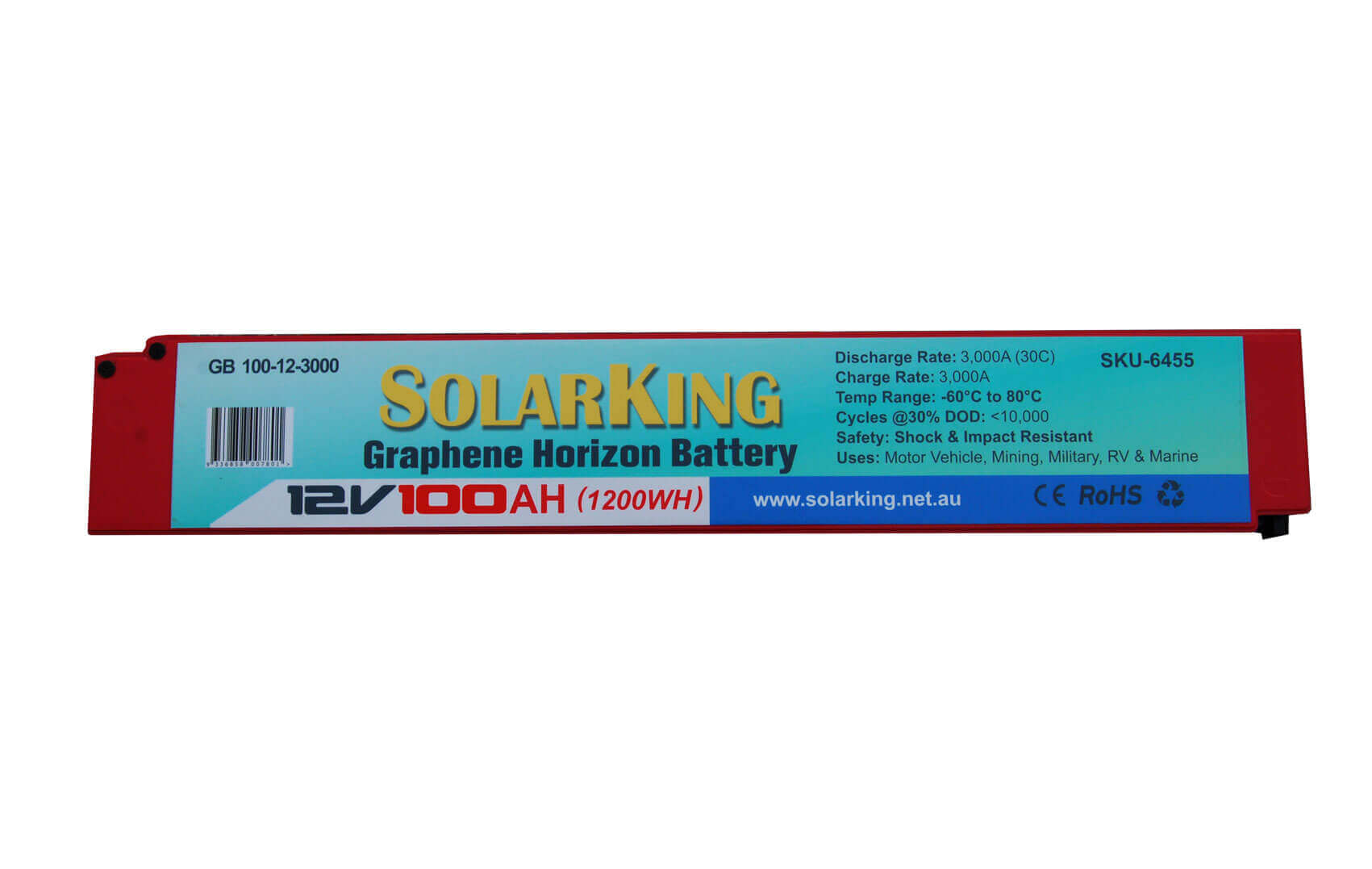

    SolarKing Graphene Titanate lithium batteries are a special designed lithium battery for very heavy-duty applications. The battery is suitable for high power requirements.

    Graphene batteries use weaved grid like bi-polar plates placed inside the battery case. The individual plates are slightly smaller than the height and depth of the battery (128x117mm).

    Having a maximum charge and discharge capacity of 3000A (30C) these batteries can start the biggest motors or run products requiring large start up currents.

    These batteries suit commercial applications, military and marine/RV uses.

    Graphene batteries are very safe and are not affected by impact or vibration. These batteries can be shot with a gun, drilled through or pierced and the battery will still function safely.

    Wide temperature operating range, -60°C to +80°C. This battery is not affected by below freezing conditions like other batteries.

    No built in BMS system is required with Graphene Titanate batteries.

    • 100AH Graphene Titanate Lithium
    • 10,000 Cycles (@ 30% DOD)
    • Massive 3,000A Charge & Discharge Rate
    • Wide temperature operation range
    • Can be connected in series or parallel
    • Equivalent to 3 or 4 100AH deep cycle lead acid batteries
    • Can be used to start motor vehicles
    • Military and commercial use
    • Specific Power is up to 450W/Kg
    • Dimensions
      767x128x117mm
    • Chemical
      Graphene Titanate Lithium Ion
    • Weight
      25.8Kg
    • Operating Temperature Range:
      -60°C ~ +80°C
    • VoltageV :
      12.2VDC
    • Amperage :
      100AH
    • Max Discharge Rates:
      30C
    • Max Continuous Current:
      3,000A
    • Min Charge Current :
      2A
    • Nominal 10 Second Pulse :
      30A
    • Max Charge Current :
      3,000A
    • Max Charge Voltage :
      14.5V
    • Cell Balancing:
      Not Required
    • Cycles @ 100% DOD :
      3000 Cycles
    • Cycles@ 80% DOD :
      5000 Cycles
    • Cycles@ 50% DOD :
      8000 Cycles
    • Cycles@ 30% DOD :
      8000 Cycles
    • Low Voltage cut out :
      10.0VDC
    • Maximum In-series voltage :
      30V
    • Terminal :
      T10
    • 1x GB-100-12-3000 Lithium Battery
    • Recommended charger settings for SolarKing Lithium Batteries 100AH and above
