Australian summers continue to get hotter and so do our homes and workplaces. A great solution to tackle this is Solar Roof Ventilation. Have you ever noticed how the lower storey of a 2 storey house is much cooler than other parts of the house? This is due to the ceiling directly above blocking the extreme heat from the lower level. The SolarKing Solar Roof ventilation fan does the same job, by replacing the hot air in your roof space in summer with the cooler outside air. This makes a big difference to your indoor comfort level. Australian summer temperatures inside your roof can often reach between 50°C to 70°C, with much of this heat then entering your living spaces.

Currently, wind driven “Whirly Birds” can only exhaust around 100CBM (Cubic Metres) of air per hour while the SolarKing 320MM solar fan can pump 2100CBM of air per hour, more than 20x the air movement. This makes the SolarKing far more effective keeping your home or business cooler. You can even use multiple SolarKings on larger or two storey homes.

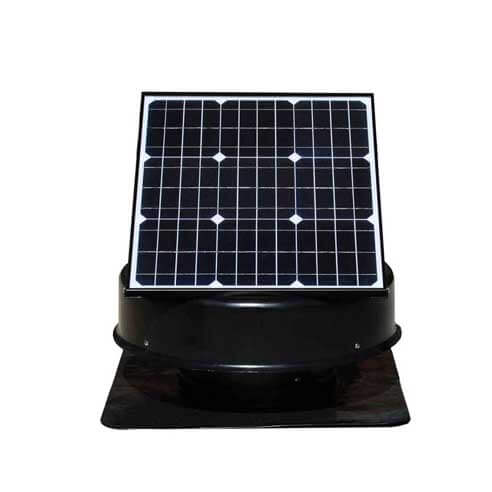

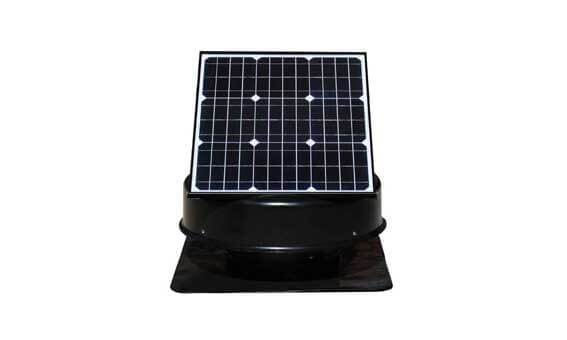

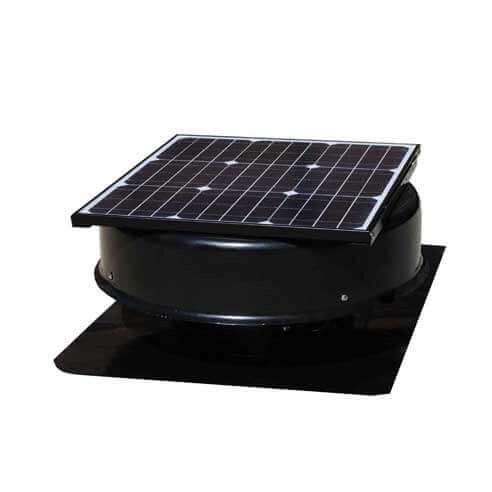

The SolarKing 320MM Solar Fan can be easily mounted on either tile, Colorbond or flat roofs. The unit also has an adjustable tilt solar panel for use on non north facing roofs or flat roofs.

  • Increase comfort levels in homes and work places
  • Reduce air conditioning costs
  • Extracts 20x more air than a “Whirly Bird”
  • Free airflow design including air deflection cone to allow the unit to extract air more efficiently than other models
  • Reduces roof temperatures by up to 30°C
  • Solar Powered means no running costs ever
  • Thermostatically controlled means no heat loss during winter

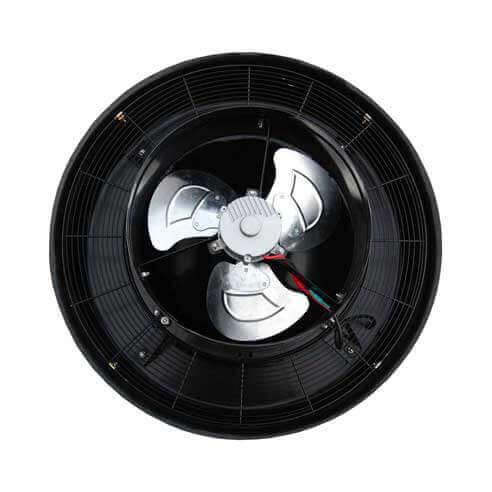

  • Brushless DC motor for quiet operation and long life
  • Corrosion resistant, suitable for coastal regions
  • Easy installation, no electrician required
  • Reduces condensation build up in your roof space
  • Improves efficiency of ducted air conditioning systems by reducing the extreme heat penetrating ducting.
  • Lightweight design also assists easy installation
  • SolarKing is Australian owned and operated
  • Suits tile, Colorbond and flat roofs
  • Mode:l 320MM SRVF
  • Capacity: 2100CBM Per Hour
  • Motor :35 Watts, 6-19VDC, 1600RPM Max, Brushless motor with double shielded ball bearings
  • Solar Panel Type: Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass
  • Solar Panel Output: 35 Watts, 18VDC

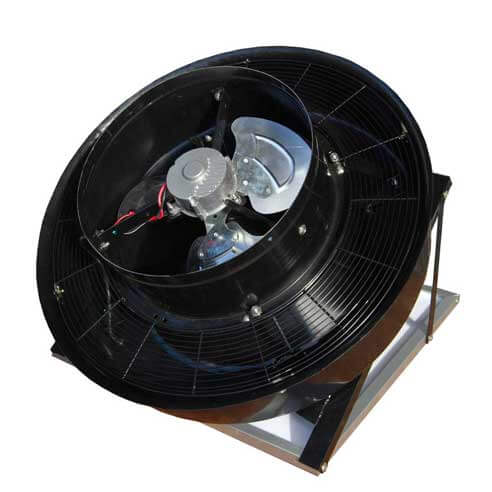

  • Fan: 300mm Balanced 5 Blade With Low Resistance
  • Noise: <45dBA
  • Automatic Shut Off: <25°C +/- 5%
  • Product Dimensions: 565x565x260mm
  • Flashing Dimensions: 565x565x1mm
  • Product Weight: 7.8Kgs
  • Construction: Aluminium Top Cover, Aluminium Body, Steel Brackets and Stainless Steel Fasteners
  • Colour: Black Powder Coated
  • Packing Dimensions: 580x570x282mm
  • Packing Weight: 9.6kgs
  • Warranty: 2 Year Warranty (10 Years on Solar Panel)
  • 1x SolarKing 320mm Solar Roof Ventilation Fan
  • 1x Roof Flashing
  • 1x Instructions
  • 2x Rafter/Batten Metal Straps



  • SolarKing 320mm Solar Roof Ventilation Fan V2_Final
  • 6752_SolarKing-320MM-Solar-Fan_Instructions-Tile-Roof
