SolarKing TD2207 Solar Regulators

Home / Solar Regulators

Heavy duty SolarKing Solar MPPT 20AMP solar regulator also known as solar charge controller. The unit has a large heat sink to dissipate heat. LCD display built in and the unit has a load timer built in for running lighting once daylight has run out for the day.

Solar regulators are used to connect your solar panels to batteries so the battery is charged at the correct power rates.

MPPT is the most efficient charging method for solar where the controller will modify the peak output power as voltage from the solar array changes.

The solar regulator suits both LiFePO4 and SLA/AGM Batteries and has dual USB ports for charging USB products.

  • Suits Lithium LiFePO4 Profile
  • 20 Amp Maximum Current
  • MPPT
  • 12/24VDC Auto Select
  • Adjustable Load Timer
  • Large Heat Sink
  • Charge Status Indicator
  • Under and Over Voltage Indicators
  • Load on/off Selectable
  • LCD Display
  • Reverse Polarity Protection
  • 2 Hour Boost Charge when under voltage
  • Over Current Protection

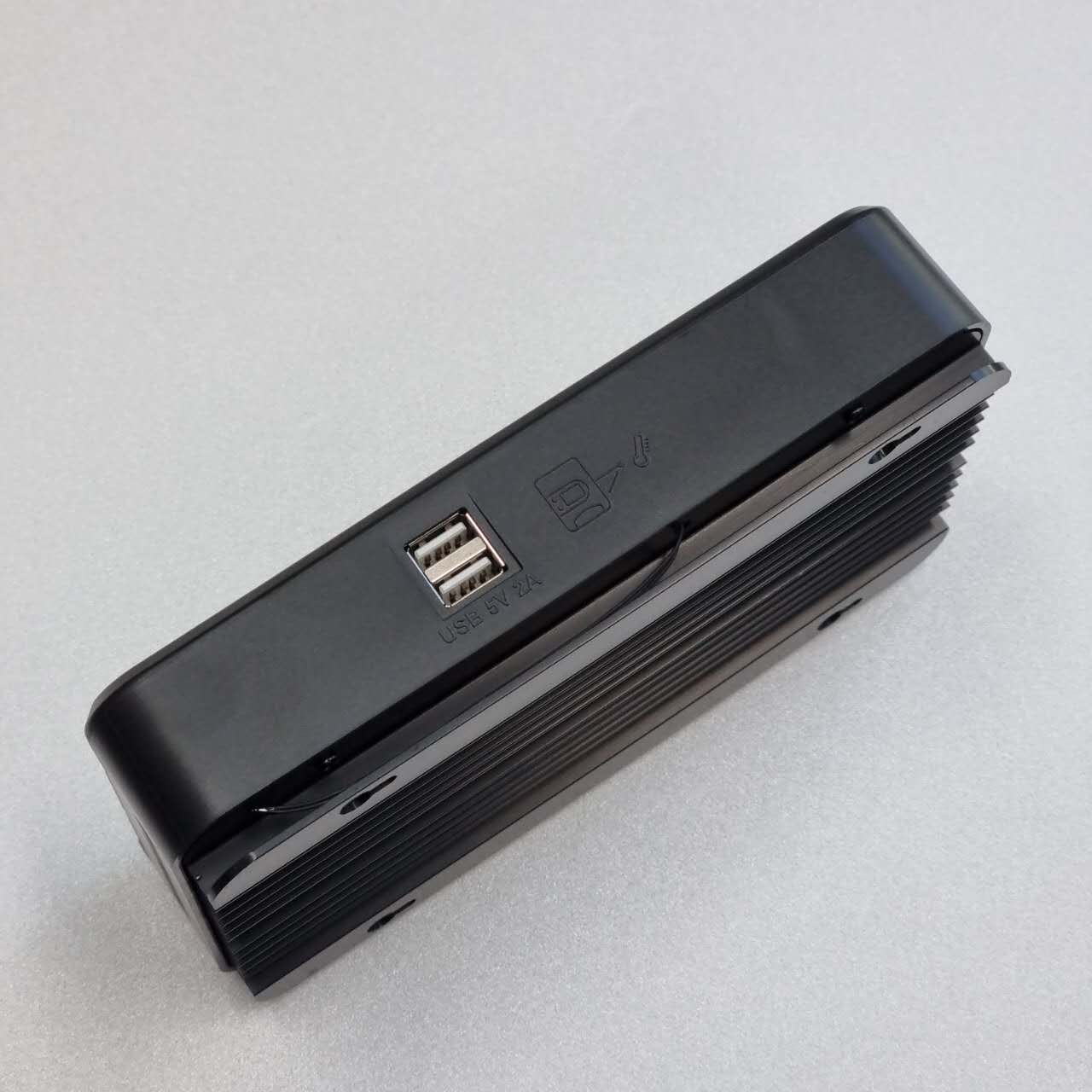

  • Dual USB charging ports
  • Dimensions: 165 x 123 x 46 mm
  • Max Charge Current: 20A
  • Output Voltage: 12/24V (Auto Select)
  • Weather Rating: IP30
  • Operating Temperature Range: -20°C ~ +70°C
  • Battery Types: LiFePO4, Lithium Ion, SLA, GEL, Flooded
  • Grounding: Common Negative
  • Low Voltage Disconnect: 11.0V Default (9V to 12V adjustable)
  • Low Voltage Reconnect: 12.6V Default (11V to 13.5V adjustable)
  • Float Voltage: 13.8V Default (13V to 15V adjustable)
  • Boost Voltage: 14.4V Default (13V to 17V adjustable)
  • Charge Type: MPPT
  • Self-Consumption: <28mA

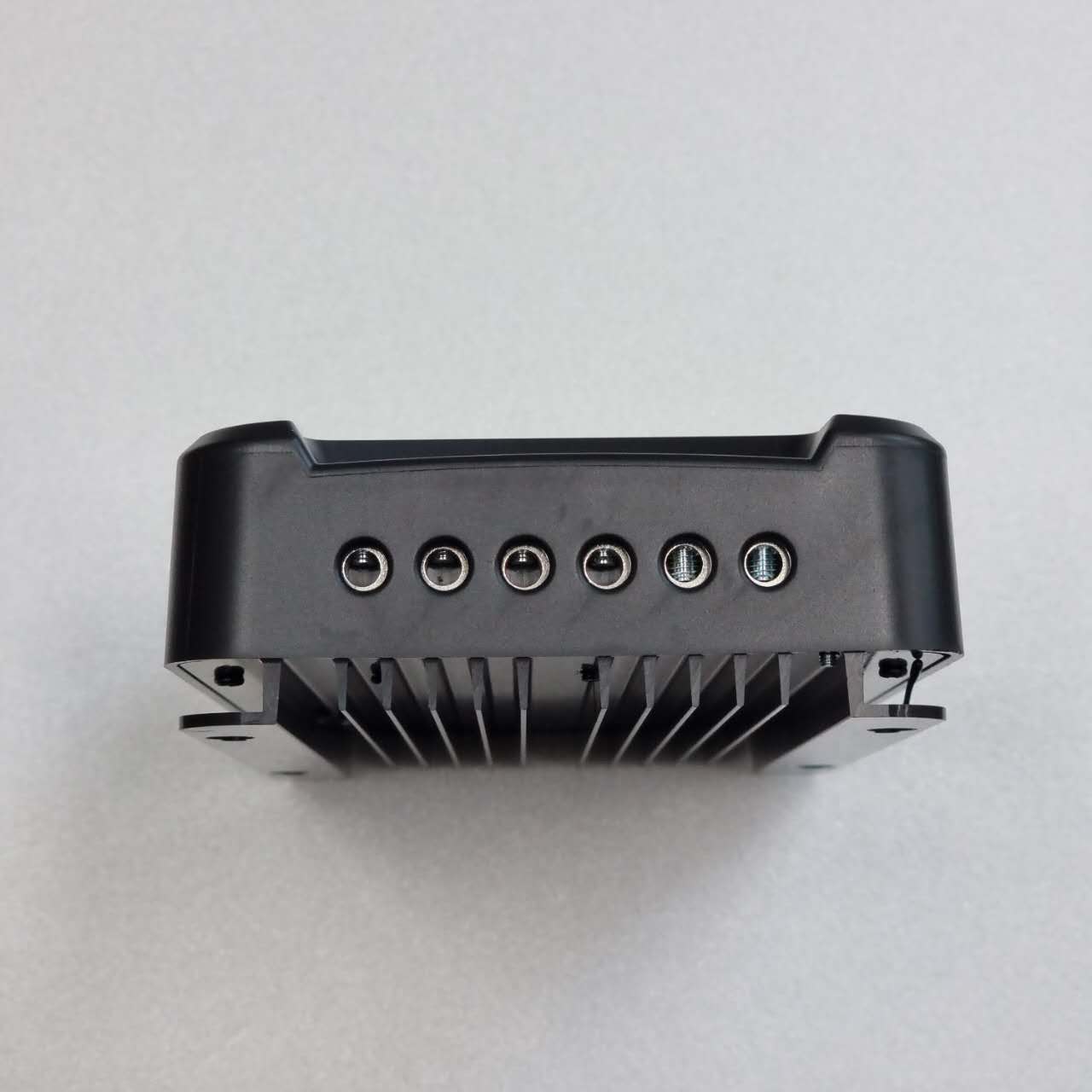

  • Terminal Connection Size: 10mm²
  • Maximum Solar Input Voltage: 75V
  • Maximum Array Power: 390W (12V), 780W (24V)
  • 1 × TD-2207 Reg
  • 1 × Instructions
  • 1 × Screw Mounting Pack
