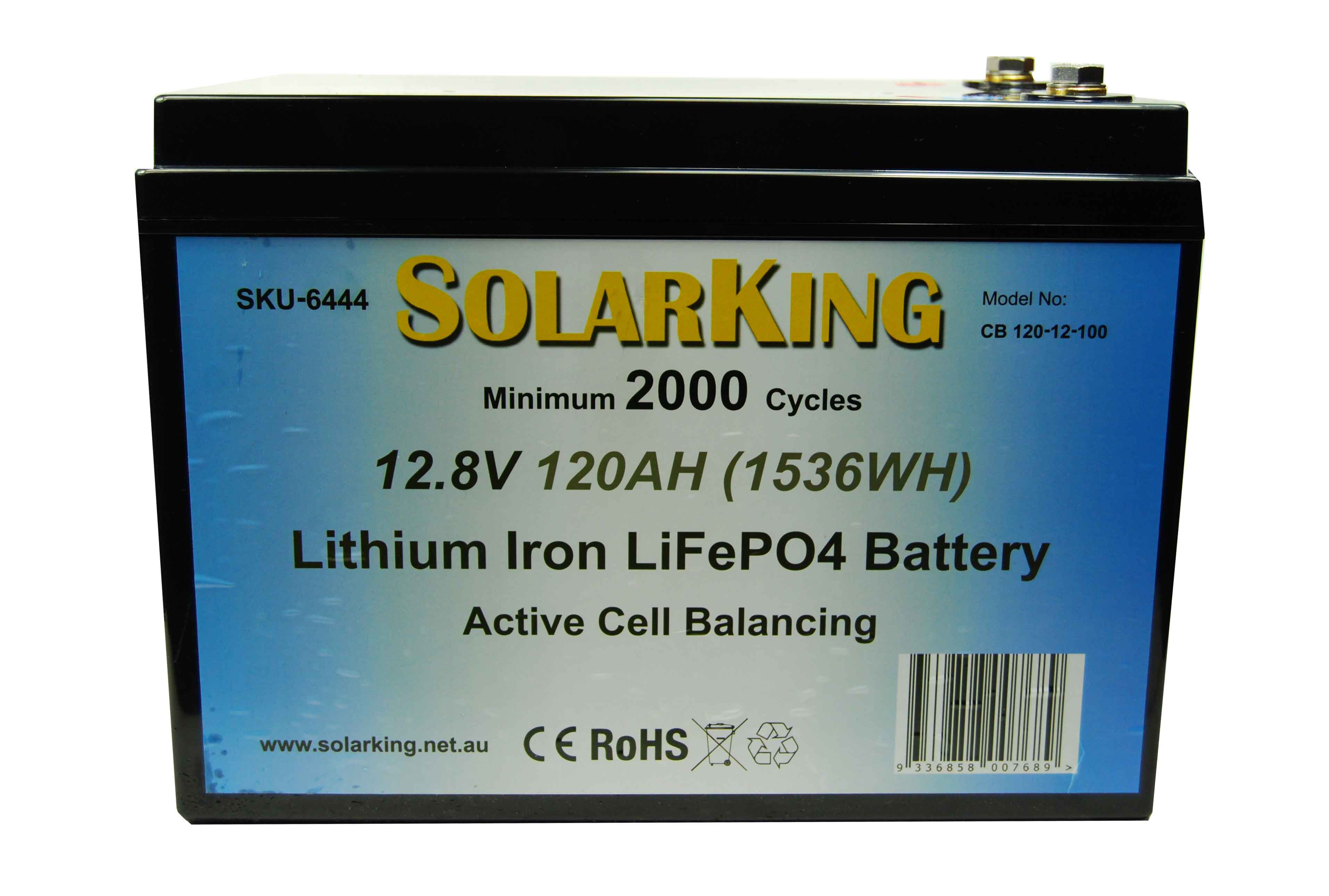

120AH Lithium LiFe PO4 SolarKing Battery - CB-120-12-100

Home / Discontinued Items

SolarKing lithium batteries are the future of battery storage. Lithium batteries are much lighter than traditional lead acid batteries and deliver unrivalled cycle life, more than 4 times more cycles compared to lead acid batteries.

Perfect for use in caravans, marine, camping and home storage applications. The batteries are fully sealed and a built in battery management system for safety protection.

If you are replacing an existing deep cycle lead acid battery you can continue to use your same battery charging system as the built in battery management system with do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will me much quicker.

This model SolarKing lithium battery use’s dynamic cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible.

  • 120AH Lithium Iron
  • 2000+Cycles
  • Built in advanced BMS with Dynamic cell balancing
  • Lightweight
  • Can be connected in series or parallel
  • Equivalent to 3 or 4 150AH deep cycle lead acid batteries
  • 3 Year Warranty
  • Note: This battery can’t be used to start motor vehicles
  • Dimensions
    365x185x245mm
  • Chemical
    Lithium Iron LiFePo4
  • Product Weight
    17.9kgs
  • Operating Temperature Range
    -20°C ~ +60°C
  • Voltage
    12.8VDC
  • Amperage
    120AH
  • Max Discharge Rates
    1C
  • Max Continuous Current
    100A
  • Max 10 Second Pulse
    150A
  • Min Charge Current
    2A
  • Nominal Charge Current
    30A
  • Max Charge Current
    100A
  • Max Charge Voltage
    15.2V
  • Cell Balancing
    5AH Nominal (8AH Peak) charge & discharge
  • Cycles @ 100% DOD
    2000 Cycles
  • Cycles@ 80% DOD
    3000 Cycles
  • Cycles@ 50% DOD
    3500 Cycles
  • Cycles@ 30% DOD
    8000 Cycles
  • Low Voltage cut out
    10VDC
  • Maximum In-series voltage
    30.4V

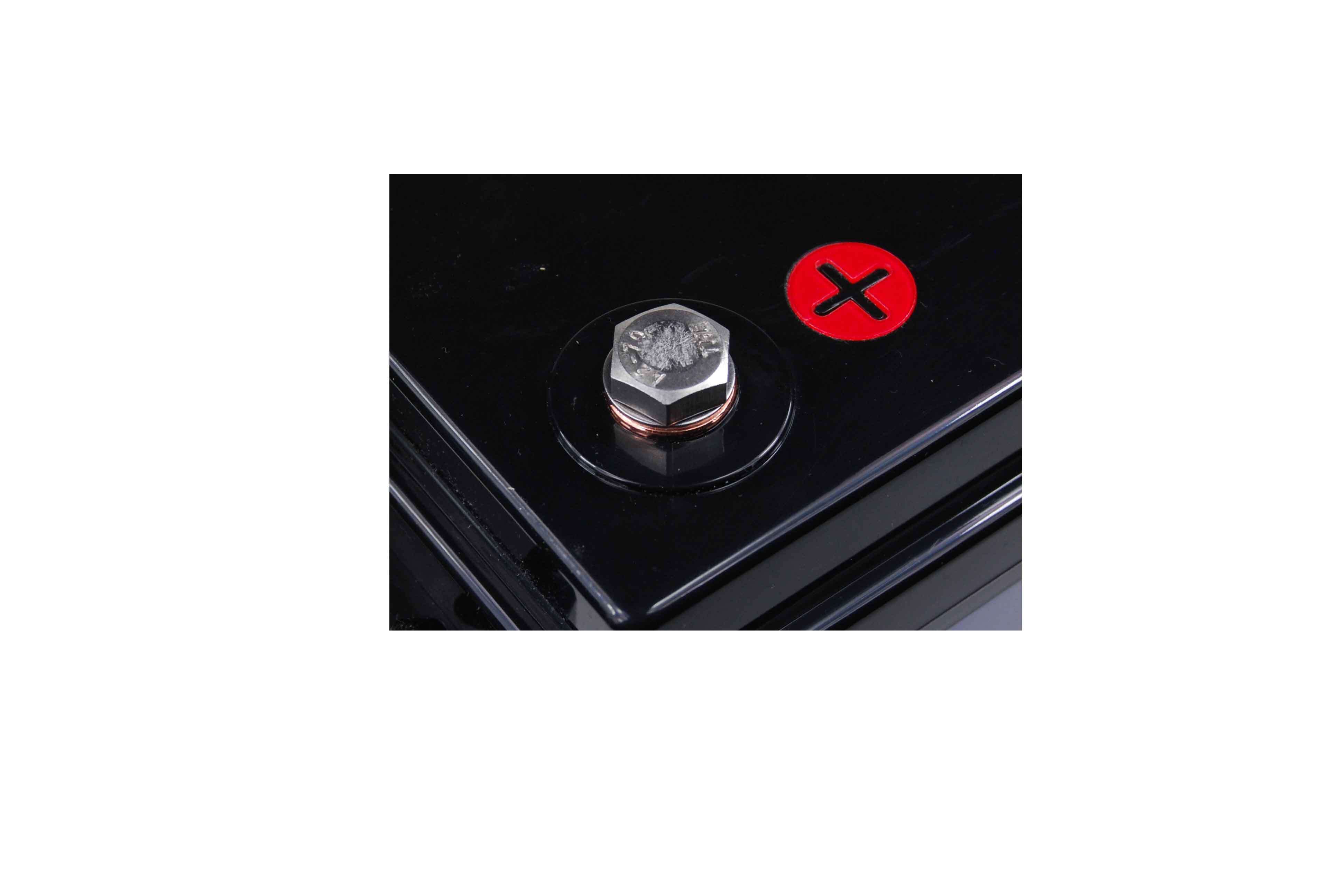

  • Terminal
    T8
  • 1x CB-120-12-100 Lithium Battery
  • 6444-CB-120_12_100_-Instructions_V3
  • 6444_SolarKing-CB_120_12_100-120AH-Lithium-Battery-Brochure_Final
  • Recommended-charger-settings-for-SolarKing-Lithium-Batteries-100AH-and-above
